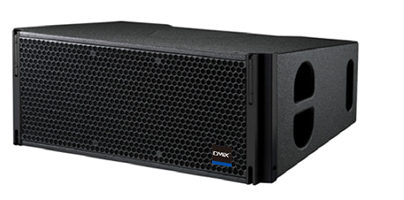

【GDA-10】
Dual 10’ 2-way Line array

The GDA-10is a 2-way, full range array cabinet containing 2pcs Neodymiun drivers and 1pcs 3’compression driver. The critically optimized sound chamber produces wavefront with a nominal dispersion patten of 100?x 10?(H x V).The chamber’s efficiency allows for increased vertical dispersion without sacrificing high frequency presence.
The GDA-10  is suited to a wide applications, its full range capability enables the GDA-10 to cover theaters,arenas , auditorium,midum size festivals with amazing sound quanlity.

SPECIFICATIONS

Model：GDA-10

Transducer：1x3’ HF, 2x10"LF，

Frequency Response：55Hz-20kHz

Dispersion Angle： 100°X 10°

Rated Power(AES/Peak)：HF:90W /360W ,LF:1000W/4000W

Sensitivity：HF:110dB ,LF:99dB

Maximum SPL：HF:129dB(continuous),135dB(peak) ,LF: 129dB(continuous),135dB(peak)

Nominal Impedance：HF:16Ω ,LF:8Ω

Amplifier Module：2x400W+1200W（8Ω）,2-input and 4-output  DSP，

Input Connection：1x Neutrik Speakon NL4,Link: 1x Neutrik Speakon

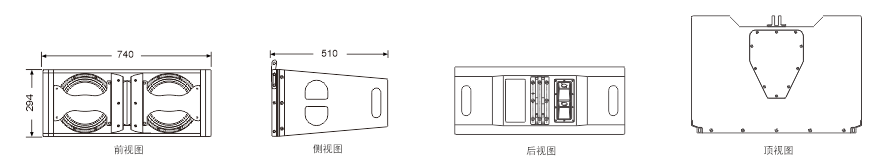

Dimensions(mm)：740×294×510（W × H × D）

Net Weight(kg)：32
